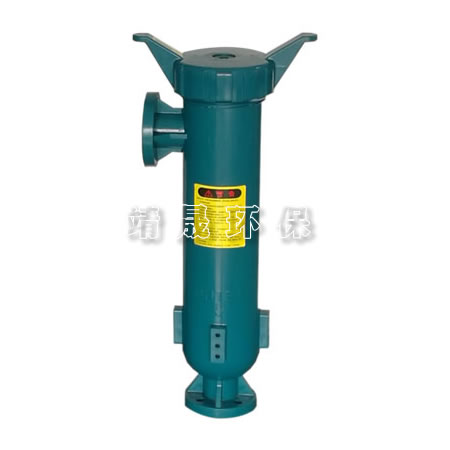

PP Bag Filter Housing

S405PP Filter Housing's Working Features:
--The inner-side is very smooth, no ditch, no dead angle, easy to wash.
--P- handle on the cover helps to open the top cover and change materials.
--2" NPT & FLANGE Inlet and Outlet.
--The bag has a grip respectively, very convenient to change, safe and clean.
--Working pressure can reach 7kg/cm2 (design pressure 15kg/cm2), operate temperature can be up to 43 ¡æ/ 110F (material able to bear 83 ¡æ).
--Please operate in accordance with the condition of standardizing , make sure not to exceed pressure limit or temperature limit.
--For the filter bag: Size 2 (D7" * L32") & Size 5 (D6" * L20")
PP Bag Filter Housing

PP Bag Filter Housing Filtration specification:
Inlet & Outlet: 2¡± NPT & Flange
Filtration area: 0.23 m2
Flow rate: 23 m3/h
Design pressure: 6 bar
Suitable working pressure : 3-4 bar
Housing material: PP
Optional micron rate: 1um, 5um, 10um, 25um, 50um, 100um, 150um, 200um...600um...1000um
If you need other model, please contact us.

PP Bag Filter Housing Filtration system application:
---Automotive
---Paints, Coating, Inks, Dispersions
---Water and Water Treatment
---Solvents
---Lubricants, Metalworking Fluids
---Parts Cleaning Solutions
---Pulp and Paper
---Pharmaceutical
---Food Processing
---Chemical Processing
---Edible Oils
---Potable Water, Beer, Wine

PP BAG FILTER HOUSING MODEL TABLE

Model Max Flow(m3/h) Max pressure Max Temp Pipe Size Material
S405-PP 23 6bar 60¡ãC 2"NPT PP
S405PPH50W 30 6bar 90¡ãC 2" Flange PP
S402-PP 40 6bar 60¡ãC 2"NPT PP
S402-UPVC 40 6bar 60¡ãC 2"NPT &Flange UPVC
ST402-PPR 40 10bar 100¡ãC 2.5" Flange PP
S6-PP 10 6bar 80¡ãC 1.5"NPT PP
S402PPH50W 40 6bar 80¡ãC 2"Flange PP
