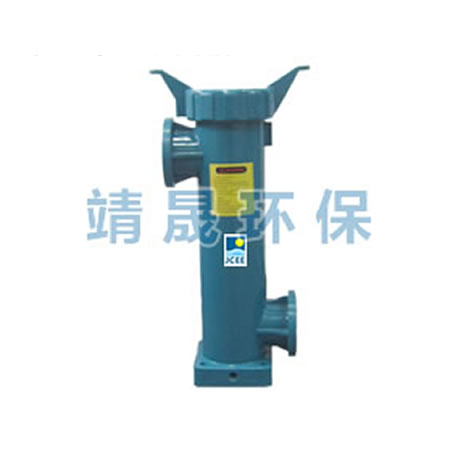

PP Bag Filter Housing

The new SIZE 5 plastic bag filter housing, solid structure, safe, reliable, easy to install, without any welding, economical and durable. Special material PP can be used for most chemical liquid filtration, corrosion resistance to most chemicals.
Specially designed screw rotating cover without any tools to switch freely; flange-style access interface, to avoid leakage and cracking of the traditional pipe welding and screw connection; filter bag and filter bucket in close contact with any filter residue can not penetrate equipment.
Plastic Bag Filter Housing

The new No. 5 plastic bag filter housing product advantages:
* Easy to change the filter bag filter with different filtration accuracy.
* Screw cap design allows it to open and close the cartridge without any tools, operation and maintenance fast.
* Fluoroplastic rubber or silicone seals, suitable for a wide range of pH and temperature liquid, so as to meet the production needs.
* Polished tube wall design for easy cleaning or flushing in place.
* Four-hole mounting square base design, to improve the ease of installation, strengthening the stability of the filter bucket.
* Filter ring and the filter ring close to the wall design to effectively prevent liquid leakage.
* Net blue one form, mesh blue appearance design uniform distribution, orderly prominent solid square column, increased network blue pressure resistance.
* Flange bolt hole from the multi-function, with GB, American standard, Japanese standard, German standard flange.
Filtration Specification:
Inlet & Outlet: DN50 Flange
Filtration area: 0.3 m2
Flow rate: 30 m3/h
Design pressure: 6 bar
Housing material: PP
Optional micron rate: 0.5um, 1um, 5um, 10um, 25um, 50um, 100um, 150um, 200um...600um...1000um

Filtration system application:
Hydrochloric acid, Sulfuric acid, Aqua regia and other strong Acid and Alkali solution filtration and most of the chemical liquid filtration.

PP BAG FILTER HOUSING MODEL TABLE

Model Max Flow(m3/h) Max pressure Max Temp Pipe Size Material
S405-PP 23 6bar 60¡ãC 2"NPT PP
S405PPH50W 30 6bar 90¡ãC 2" Flange PP
S402-PP 40 6bar 60¡ãC 2"NPT PP
S402-UPVC 40 6bar 60¡ãC 2"NPT &Flange UPVC
ST402-PPR 40 10bar 100¡ãC 2.5" Flange PP
S6-PP 10 6bar 80¡ãC 1.5"NPT PP
S402PPH50W 40 6bar 80¡ãC 2"Flange PP
