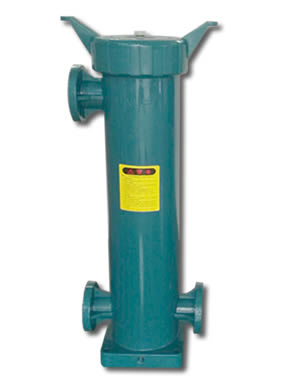

Size 2 Plasitc Bag Filter Housing

Size 2 Plasitc Bag Filter Housing product features:

* Easy to change the filter bag filter with different filtration accuracy.

* Screw cap design allows it to open and close the cartridge without any tools, operation and maintenance fast.

* Fluoroplastic rubber or silicone seals, suitable for a wide range of pH and temperature liquid, so as to meet the production needs.

* Polished tube wall design for easy cleaning or flushing in place.

* Four-hole mounting square base design, to improve the ease of installation, strengthening the stability of the filter bucket.

* Filter ring and the filter ring close to the wall design to effectively prevent liquid leakage.

* Net blue one form, mesh blue appearance design uniform distribution, orderly prominent solid square column, increased network blue pressure resistance.

* Flange bolt hole from the multi-function, with GB, American standard, Japanese standard, German standard flange.

S402PPH50W FILTRATION SPEC:
Inlet & Outlet: 2¡± Flange
Filtration area: 0.5 m2
Flow rate: 40 m3/h
Max. pressure: 6 bar
Housing material: PP plastic
Optional micron rate: 1um, 5um, 10um, 25um, 50um, 100um, 150um, 200um...600um...1000um

If you need other model, please contact us.

PP Bag Filter Housing

Plastic bag filter housing is a filtration system which is produce with 100% PP (polypropylene )£¬PP bag filter housing is made of excellent PP material, can be used for filtering a lot of chemical sour soda liquids.

MODEL: S402PPH50W

Material: PP plastic

Flow: 40T/H

Inlet&Outlet: DN50

PP Bag Filter Housing Filtration system application:
---Automotive
---Paints, Coating, Inks, Dispersions
---Water and Water Treatment
---Solvents
---Lubricants, Metalworking Fluids
---Parts Cleaning Solutions
---Pulp and Paper
---Pharmaceutical
---Food Processing
---Chemical Processing
---Edible Oils
---Potable Water, Beer, Wine

PP BAG FILTER HOUSING MODEL TABLE

Model Max Flow(m3/h) Max pressure Max Temp Pipe Size Material
S405-PP 23 6bar 60¡ãC 2"NPT PP
S405PPH50W 30 6bar 90¡ãC 2" Flange PP
S402-PP 40 6bar 60¡ãC 2"NPT PP
S402-UPVC 40 6bar 60¡ãC 2"NPT &Flange UPVC
ST402-PPR 40 10bar 100¡ãC 2.5" Flange PP
S6-PP 10 6bar 80¡ãC 1.5"NPT PP
S402PPH50W 40 6bar 80¡ãC 2"Flange PP
