A-Style Sidein Single Bag Filter Housings offer the most cost-effective solution to single bag filter housing requirements. About bag filtration, inside the bag filtration system, the filter bag is supported by an inside metal basket. The incoming fluid flow out after filtered by the filter bag, and the impurities are intercepted in the filter bag. You can continue to use the filtration system after changing the filter bag.
When you are looking for a cost-effective single bag filter housing that is both durable and reliable, look to the bag filter housing.

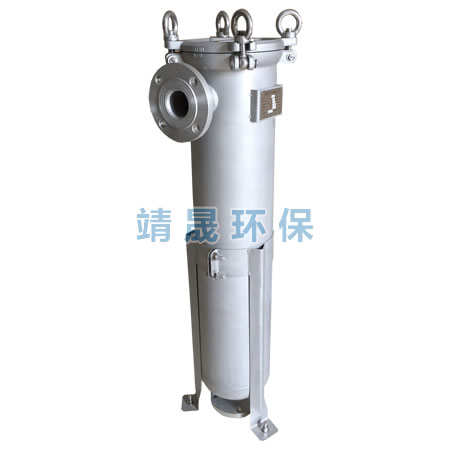

S402 single-bag filter housing with side into the bottom of the way, the cover for the flat rings, through the pressure of the pipeline will filter the liquid into the bag filter media or pumped into the bag body, to be filtered liquid medium through the stainless steel plate red Hole support filter supporting filter blue filter bags, resulting in the ideal solid-liquid separation to achieve the liquid medium is filtered effect. Different filtering accuracy, depending on the accuracy of the filter bag. |
S402 Single-Bag Filter Housing Filtration Specification:
Inlet & Outlet: 2-4Ħħ Flange
Filtration area: 0.5 m2
Flow rate: 40 m3/h
Design pressure: 10 bar
Suitable working pressure : 4-6 bar
Housing material: 304SS
Optional micron rate: 1um, 5um, 10um, 25um, 50um, 100um, 150um, 200um...600um...1000um
If you need other model, please contact us.
Filtration system application:
---Automotive
---Paints, Coating, Inks, Dispersions
---Water and Water Treatment
---Solvents
---Lubricants, Metalworking Fluids
---Parts Cleaning Solutions
---Pulp and Paper
---Pharmaceutical
---Food Processing
---Chemical Processing
---Edible Oils
---Potable Water, Beer, Wine |
