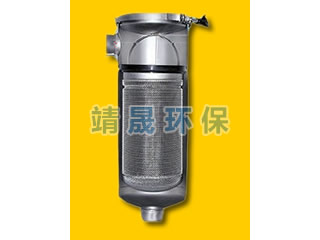

ECO Single Bag Filter Housing

ECO Single Bag Filter Housings are the light-weight bag filter housings combine quality and value.
ECO Single bag filter housing-Stainless Steel Bag Filter Housing For Industrial Filtration
Eco Bag Filter Housing is the perfect choice for cost sensitive applications that require a reliable light weight vessel withvery good sealing capabilities. ECO Bag Filter Housing,  V-Clamp cover design, stainless steel basketsand 1, 1/2Ħħ or 2Ħħ NPT piping connections. Legs not standard,if you need the Legs,please tell us.

ECO Bag Filter Housing specification
Eco Bag Filter Housing Filtration Specification:
Inlet & Outlet: 1, 1/2Ħħ or 2Ħħ NPT
Filtration area: 0.05 & 0.1 & 0.25 & 0.5m2
Flow rate: 5/10/20/40 m3/h
Design pressure: 6 bar
Suitable working pressure : 3-4 bar
Housing material: 304SS
Filter Bag size: D4" *L8" /D4" *L14" /D7" *L17" /D7" *L32"
Optional micron rate: 1um, 5um, 10um, 25um, 50um, 100um, 150um, 200um...600um...1000um

ECO Single Bag Filter Housing
ECO Bag Filter Housing application
---Paints, Coating, Inks, Dispersions
---Water and Water Treatment
---Solvents
---Lubricants, Metalworking Fluids
---Parts Cleaning Solutions
---Pulp and Paper
---Pharmaceutical
---Food Processing
---Chemical Processing
---Edible Oils
---Potable Water, Beer, Wine
---Automotive
ECO Single Bag Filter Housing
ECO BAG FILTER HOUSING MODEL TABLE
Model Max Flow(m3/h) Max pressure Pipe Size Material
SC403 5 6bar 1"/1.5" 304/316
SC404 10 6bar 1"/1.5" 304/316
SC401 20 6bar 1.5"/2" 304/316
SC402 40 6bar 1.5"/2" 304/316
