Duplex Bag Filter Housing |
Duplex bag filter housings For 24 hours Working Condition Liquid Filtration System
For applications where the system flow cannot be shut down for filter bag change out. Either a butterfly or ball valve assembly is used to divert the flow between the 2-5 units filter housings so the isolated, out of service filter housing can be serviced. The flow is never shut down. |
 |

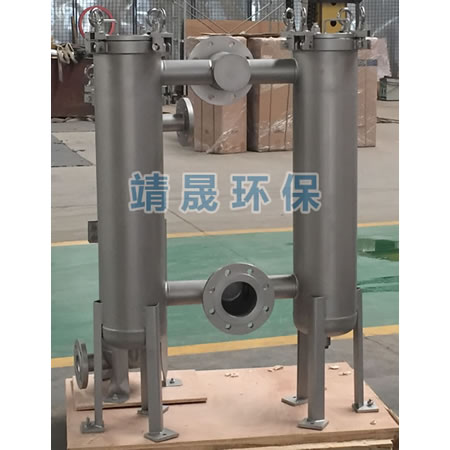

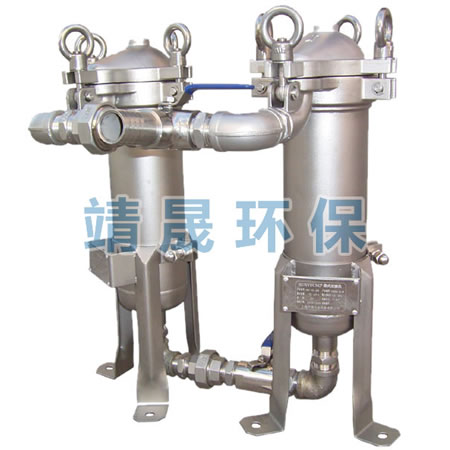

2 Bags Duplex Bag Filter Housing For 24 hours Working-Duplex Bag Filter Housings
Filtration Specification:
Inlet & Outlet: 1Ħħ Flange
Filtration area: 0.2 m2
Flow rate: 20 m3/h
Design pressure: 10 bar
Suitable working pressure : 4-6 bar
Housing material: 304SS
Optional micron rate: 1um, 5um, 10um, 25um, 50um, 100um, 150um, 200um...600um...1000um
If you need other model, please contact us.
Our bag filter housing can be used alone or in combination to meet various industrial filtration needs. Please find the pictures as follow for reference.
Please send us the specification detail by email for quote, thanks. |
 |
Filtration system application:
---Automotive
---Paints, Coating, Inks, Dispersions
---Water and Water Treatment
---Solvents
---Lubricants, Metalworking Fluids
---Parts Cleaning Solutions
---Pulp and Paper
---Pharmaceutical
---Food Processing
---Chemical Processing
---Edible Oils
---Potable Water, Beer, Wine |
| DUPLEX BAG FILTER HOUSING MODEL TABLE |
| Model |
Max Flow(m3/h) |
Max pressure |
Pipe Size |
Material |
| ST404-DX-304-G25 |
20 |
10bar |
1" |
304/316 |
| ST402-DX-304-G50 |
80 |
10bar |
2" |
304/316 |
| S402-DX-304-G50 |
80 |
10bar |
2" |
304/316 |
| S402P-DX-304-G50 |
80 |
10bar |
2" |
304/316 |
|
| |

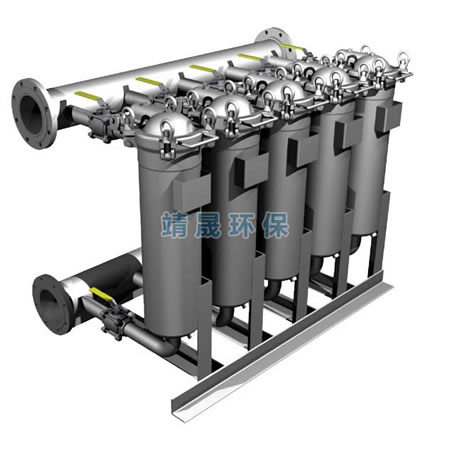

Multi Dulpex Bag Filter System |
Multi Dulpex Bag Filter Systems are for applications where the flow rate is too high for a single bag filter housing. Multi Duplex Bag Filter Housings For 24 hours Working Condition Liquid Filtration System. For applications where the system flow cannot be shut down for filter bag change out.
For applications where the system flow cannot be shut down for filter bag change out. Either a butterfly or ball valve assembly is used to divert the flow between the 2-5 units filter housings so the isolated, out of service filter housing can be serviced. The flow is never shut down. |
 |
5 Bags Duplex Bag Filter Housing For 24 hours Working-Duplex Bag Filter Housings
Filtration Specification:
Inlet & Outlet: 4-6Ħħ Flange
Filtration area: 2.5 m2
Flow rate: 225 m3/h
Design pressure: 10 bar
Suitable working pressure : 4-6 bar
Housing material: 304SS
Optional micron rate: 1um, 5um, 10um, 25um, 50um, 100um, 150um, 200um...600um...1000um
If you need other model, please contact us.
Our bag filter housing can be used alone or in combination to meet various industrial filtration needs. Please find the pictures as follow for reference.
Please send us the specification detail by email for quote, thanks.
Filtration system application:
---Automotive
---Paints, Coating, Inks, Dispersions
---Water and Water Treatment
---Solvents
---Lubricants, Metalworking Fluids
---Parts Cleaning Solutions
---Pulp and Paper
---Pharmaceutical
---Food Processing
---Chemical Processing
---Edible Oils
---Potable Water, Beer, Wine |
|
|
