Quick Lock Multi Bag Filter Housing

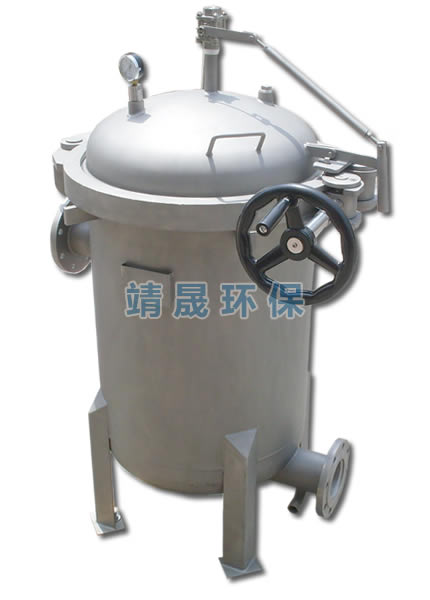

Quick Lock Multi bag filter housing (Qic lock opening cover with Spring Assist Hinge)
The QLM Bag Vessel defines the sitate of the art for multi-bag vessels.The operator's safely and ease of bag change out were considered paramount in its design. A low profile design means the top of the bag is at about waist height for most operators--thus providing a more ergonomic position for lifting dirty bags out of the vessel. The QLM unlque quick opening spindle closure mechanism provides for a 20 second opening--without tools. The integral vent valve mechanism protects the operator by preventing the opening of the vessel without first venting the pressure. Finally, the spring assisted hinge makes lifting the lid easy and safe. All vessels are constructed of 304/316 stainless steel. The vessel is pressure rated to 150psi.
Quick Lock Multi Bag Filter Housing

Quick Lock Multi bag filter housing Feature

--We can provide almost all kinds of multi-bag filters available, from double-bag type to 12-bag type, complete in specifications.
--the flanges of the link outlet-inlet from 2"to10".
--the Max.flow of single unit are from 90 cubic m./h to 540 cubic m./h.
--Available in 304 or 316 stainless steel material
--If you buy our multi-bag filters, you can wait for a long time to change the used bags.

Quick Lock Multi bag filter housing Model Table

Model Max Flow(m3/h-gpm) Max pressure Design Temp Pipe Size Material
MK402 90 1.0Mpa 80ˇăC 3-4" 304/316
MK403 135 1.0Mpa 80ˇăC 3-4" 304/316
MK404 180 1.0Mpa 80ˇăC 3-6" 304/316
MK405 225 1.0Mpa 80ˇăC 3-6" 304/316
MK406 270 1.0Mpa 80ˇăC 3-8" 304/316
MK408 360 1.0Mpa 80ˇăC 4-8" 304/316
MK4010 450 1.0Mpa 80ˇăC 6-8" 304/316
MK4012 540 1.0Mpa 80ˇăC 6-10" 304/316
