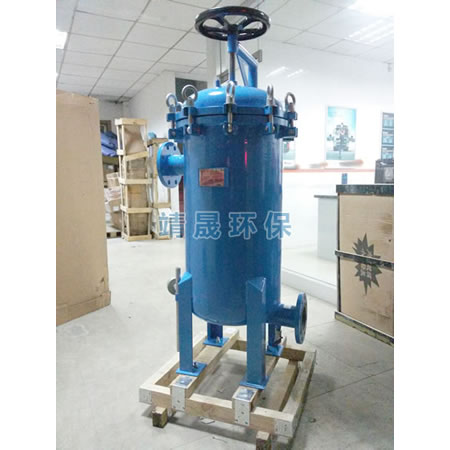

Carbon Steel Multi Bag Filter Housing

MULTI BAG FILTER HOUSING FEATURES:
--The multi bag filter housing is designed with a proven swing eye-bolt or segment clamp closure mechanism.
--Positive O-ring sealing offers easy and safe operation.
--We can provide almost all kinds of multi-bag filters available, from double-bag type to 24-bag type, complete in specifications.
--the flanges of the link outlet-inlet from 3"to18".
--the Max.flow of single unit are from 90 cubic m./h to 1,080 cubic m./h.
--Available in carbon steel or Type 304 or 316 stainless steel for high corrosion resistance.
--If you buy our multi-bag filters, you can wait for a long time to change the used bags.
Carbon Steel Multi Bag Filter Housing

Filtration Specification:

Inlet & Outlet: 2-4ˇ± Flange
Filtration area: 1.0 m2
Flow rate: 90 m3/h
Design pressure: 10 bar
Suitable working pressure : 4-6 bar
Housing material: 304SS
Optional micron rate: 1um, 5um, 10um, 25um, 50um, 100um, 150um, 200um...600um...1000um
If you need other model, please contact us.

Filtration system application:
---Automotive
---Paints, Coating, Inks, Dispersions
---Water and Water Treatment
---Solvents
---Lubricants, Metalworking Fluids
---Parts Cleaning Solutions
---Pulp and Paper
---Pharmaceutical
---Food Processing
---Chemical Processing
---Edible Oils
---Potable Water, Beer, Wine

Multi bag filter housing Model & Specification

Model Max Flow(m3/h-gpm) Max pressure Design Temp Pipe Size Material
M402-G80 90(400) 10bar 80ˇăC 3-4" 304/316/CS
M403-G80 135(600) 10bar 80ˇăC 3-4" 304/316/CS
M404-G100 180(800) 10bar 80ˇăC 3-6" 304/316/CS
M405-G100 225(1000) 10bar 80ˇăC 3-6" 304/316/CS
M406-G150 270(1200) 10bar 80ˇăC 3-8" 304/316/CS
M407-G150 315(1400) 10bar 80ˇăC 3-8" 304/316/CS
M408-G200 360(1600) 10bar 80ˇăC 4-8" 304/316/CS
M4010-G250 450(2000) 10bar 80ˇăC 6-8" 304/316/CS
M4012-G250 540(2400) 10bar 80ˇăC 6-10" 304/316/CS
