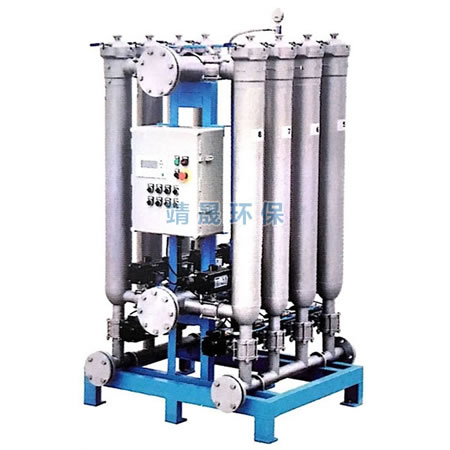

Tubular Back Washing Filter

Tubular Backwashing Filters is the automatic filtration system according to the modular design concept. It has the high reliability and flexibility for expanding. It has the following features: running automatically, very durable, no manual cleaning, very easy to open for maintenance, with unique V-SLOT filter element, completely back-flushed and less back-flushing discharging liquid. Tubular Backwashing Filters can purify the liquid and protect the downstream key equipments.
Back Washing Priciple



Tubular Backwashing Filters Main Specification

FOR LIQUID FILTRATION

FILTER-A

FILTER-B

Back-Flushing Fluid

clean filtrate

external liquid or gas

Applicable Viscosity

<50CPS

<100CPS

Contaminant Content

<300PPM

Inlet Pressure Requirement

>0.3MPA

special requirement

Installation Position

behind the pump

Before or?behind the pump

Micron rate

50-500um

20-500um

Design Pressure

1.6MPA/2.5MPA/4.0MPA

Highest Design Temperature

0-250¡æ£¨determined by the seals£©

Filter Module Quantity Per Single System

3-24

Inlet And Outlet Valve Size

DN50:?25?M3/H. ?DN65:?42?M3/H

Main Inlet And Outlet Pipeline Size

FLANGE£¬HG20592-2009£¨compatible with?DIN£©

HG20615-2009(compatible with ANSI B16.5)

Housing Wet Part Material

316L

Housing Wet Part Material

304/316L/CS/GRP

Seal Material

NBR/VITON

Drain Valve

Pneumatic ball valve, protection class IP65, valve seat material PTEF

Supply Requirement

0.6MPA clean and dry compressed air

110V/220V£¨STANDARD£©380V/440V AC,24V DC
